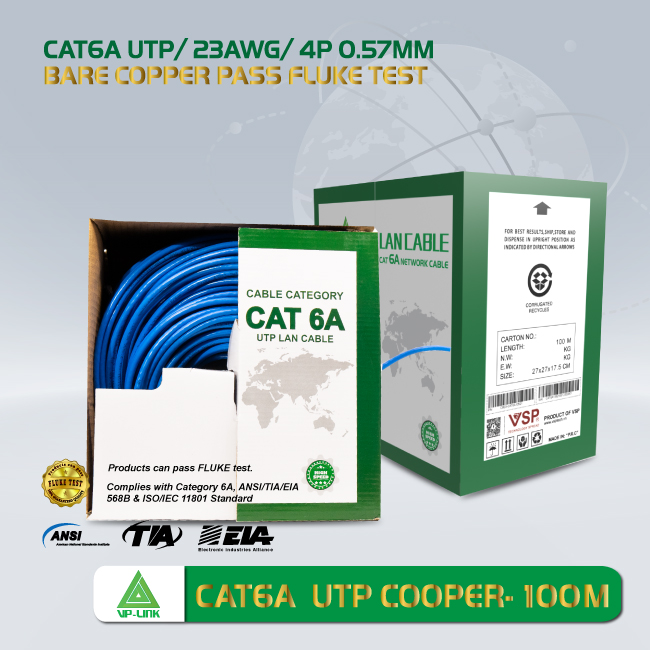

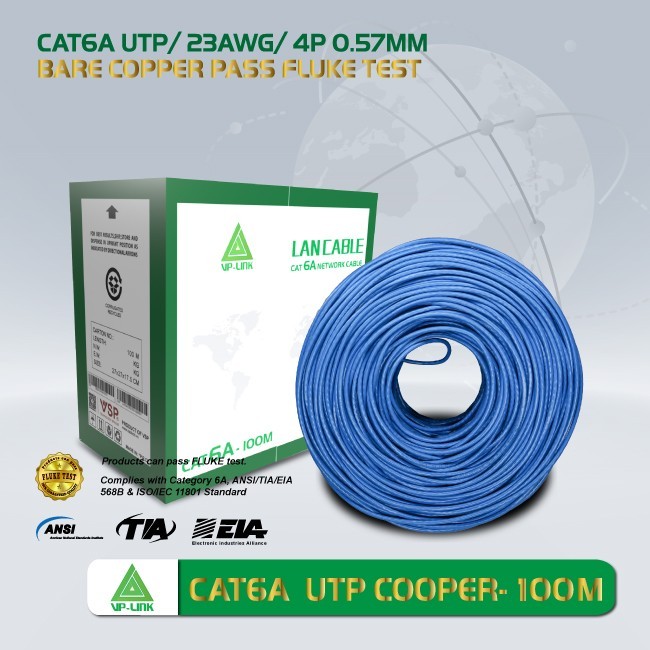

CAT6A UTP -100M
680.000đ
CAT6A UTP -100M
Mã sản phẩm:
0
680.000đ
Model: VSP-CAT6A 100M
Part number: CB03-CAT6A10521
Features:
● Complies with Category 6A, ANSI/TIA/EIA
568B & ISO/IEC 11801 Standard
● Supports transmission of digital and analogue
voice, data and video signal.
● Products can pass FLUKE test.
● Rated Temperature: -20° to +70°
Application:
● 10G Base T (IEEE 802.3)
● Fast Ethernet (IEEE 802.3u)
● 10Gvg-AnyLAN (IEEE 802.12)
● Token Ring (IEEE 802.5)
● TP-PMD (ANSI X3T9.5)
● 10G Mbps CDDI
● ATM 10G Mbps
Thông số kỹ thuật
Model: VSP-CAT6A 100M
Part number: CB03-CAT6A10521
| Features: ● Complies with Category 6A, ANSI/TIA/EIA 568B & ISO/IEC 11801 Standard ● Supports transmission of digital and analogue voice, data and video signal. ● Products can pass FLUKE test. ● Rated Temperature: -20° to +70° |
Application: ● 10G Base T (IEEE 802.3) ● Fast Ethernet (IEEE 802.3u) ● 10Gvg-AnyLAN (IEEE 802.12) ● Token Ring (IEEE 802.5) ● TP-PMD (ANSI X3T9.5) ● 10G Mbps CDDI ● ATM 10G Mbps |

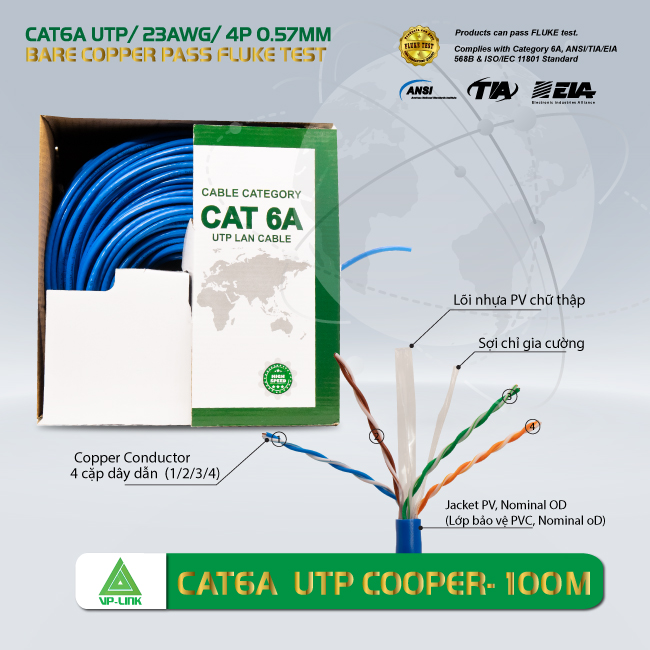

| ● Inner conductor - Material: Bare Copper Pass Fluke Test - Diameter:0.57 ± 0.01mm (23AWG) ● Insulation(Dielectric) - Material: HDPE - Thickness: ≥ 0.21mm - Diameter: 1.10 ± 0.03mm |
● Outer Jacket - Material: PVC - Thickness: ≥ 0.6mm - Nominal O.D: 7.0mm ± 0.30mm ● Twisted pair - N/A Pair 1 : Blue, White / Blue - Pair 2 : Orange, White / Orange - Pair 3 : Green, White / Green - Pair 4 : Brown, White / Brown |
Packing:
● 1000ft/ 305m per pull box (other length is also available as request)
● 2 pull boxes per carton
● Other packing is available as request
