CAT6A UTP -305M/1000ft

2,110,000đ
Hotline: 1900 633 675 Liên hệ đặt hàng

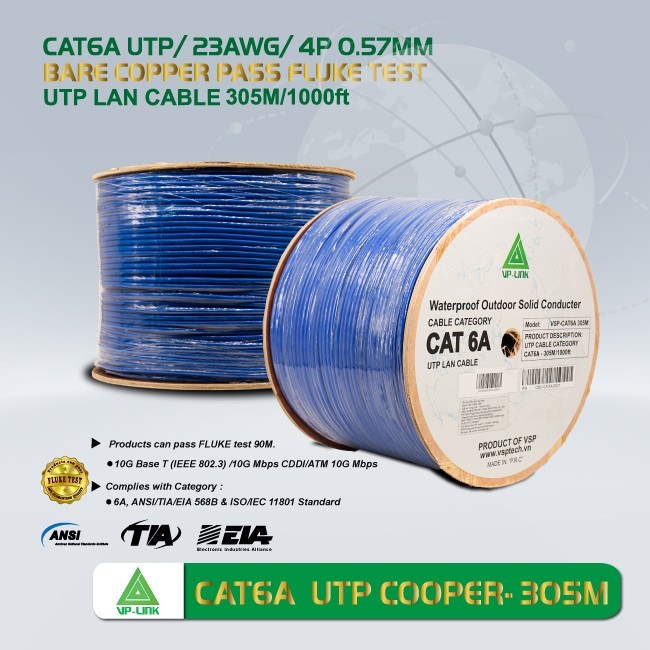

CAT6A UTP -305M/1000ft
  • Mã sản phẩm: 20220503-859
  • Còn hàng

Model: VSP-CAT6A 305M
Part number: CB01-CAT6A30521

Features:
● Complies with Category 6A, ANSI/TIA/EIA
568B & ISO/IEC 11801 Standard
● Supports transmission of digital and analogue
  voice, data and video signal.
● Products can pass FLUKE test.
● Rated Temperature: -20° to +70°
Application:
● 10G Base T (IEEE 802.3)
● Fast Ethernet (IEEE 802.3u)
● 10Gvg-AnyLAN (IEEE 802.12)
● Token Ring (IEEE 802.5)
● TP-PMD (ANSI X3T9.5)
● 10G Mbps CDDI
● ATM 10G Mbps


Tổng quan sản phẩm

Chi tiết kỹ thuật

Model: VSP-CAT6A 305M
Part number: CB01-CAT6A30521

Features:
● Complies with Category 6A, ANSI/TIA/EIA
568B & ISO/IEC 11801 Standard
● Supports transmission of digital and analogue
  voice, data and video signal.
● Products can pass FLUKE test.
● Rated Temperature: -20° to +70°		 Application:
● 10G Base T (IEEE 802.3)
● Fast Ethernet (IEEE 802.3u)
● 10Gvg-AnyLAN (IEEE 802.12)
● Token Ring (IEEE 802.5)
● TP-PMD (ANSI X3T9.5)
● 10G Mbps CDDI
● ATM 10G Mbps

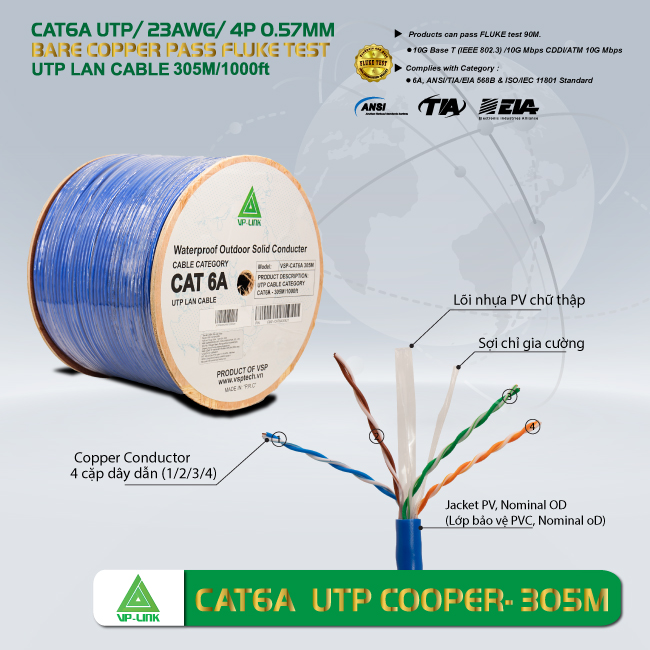

● Inner conductor
- Material: Bare Copper Pass Fluke Test
- Diameter:0.57 ± 0.01mm (23AWG)
● Insulation(Dielectric)
- Material: HDPE
- Thickness: ≥ 0.21mm
- Diameter: 1.10 ± 0.03mm		 ● Outer Jacket
- Material: PVC
- Thickness: ≥ 0.6mm
- Nominal O.D: 7.0mm ± 0.30mm
● Twisted pair
- N/A    Pair 1 : Blue, White / Blue
- Pair 2 : Orange, White / Orange
- Pair 3 : Green, White / Green
- Pair 4 : Brown, White / Brown



Packing:
● 1000ft/ 305m per pull box (other length is also available as request)
● 2 pull boxes per carton
● Other packing is available as request
