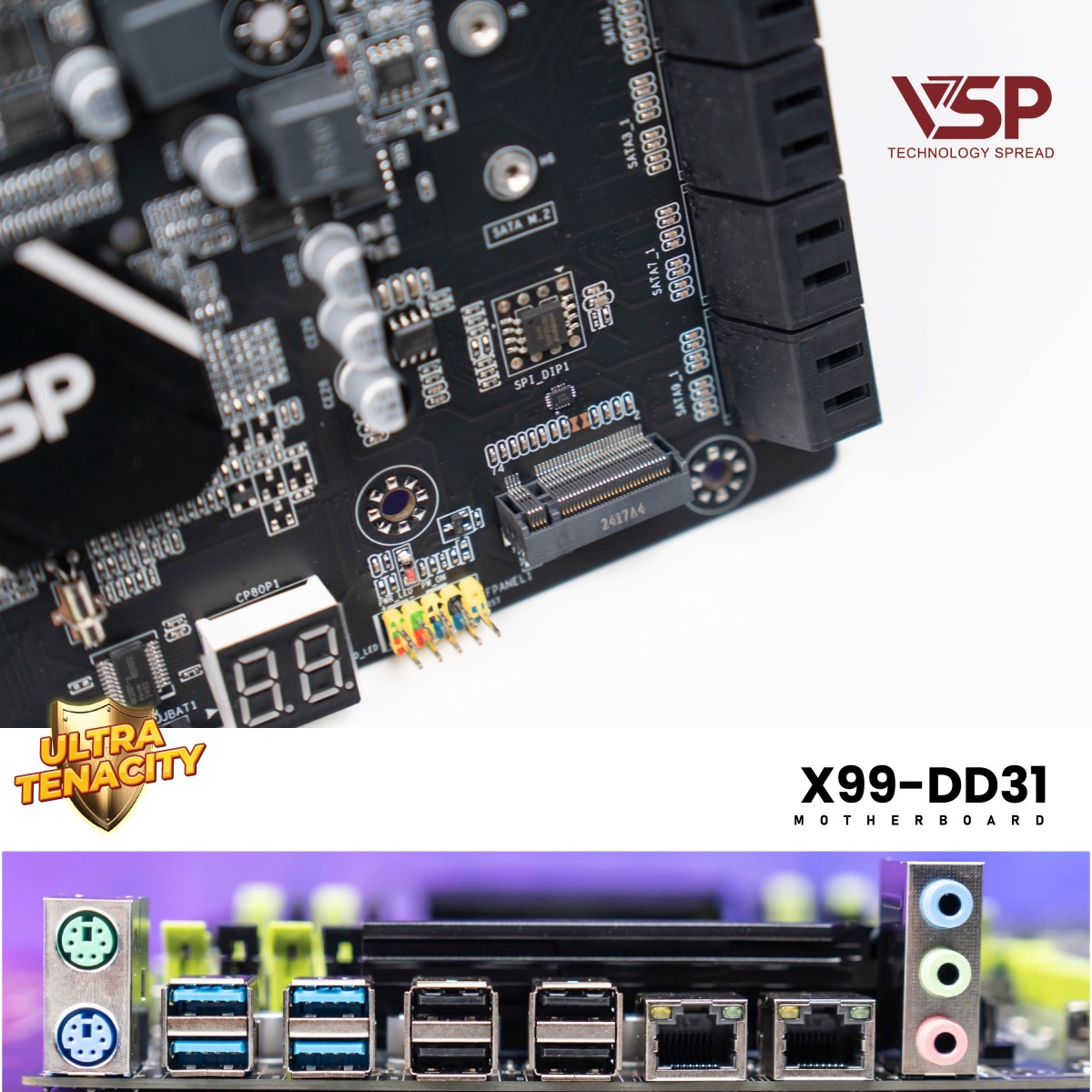

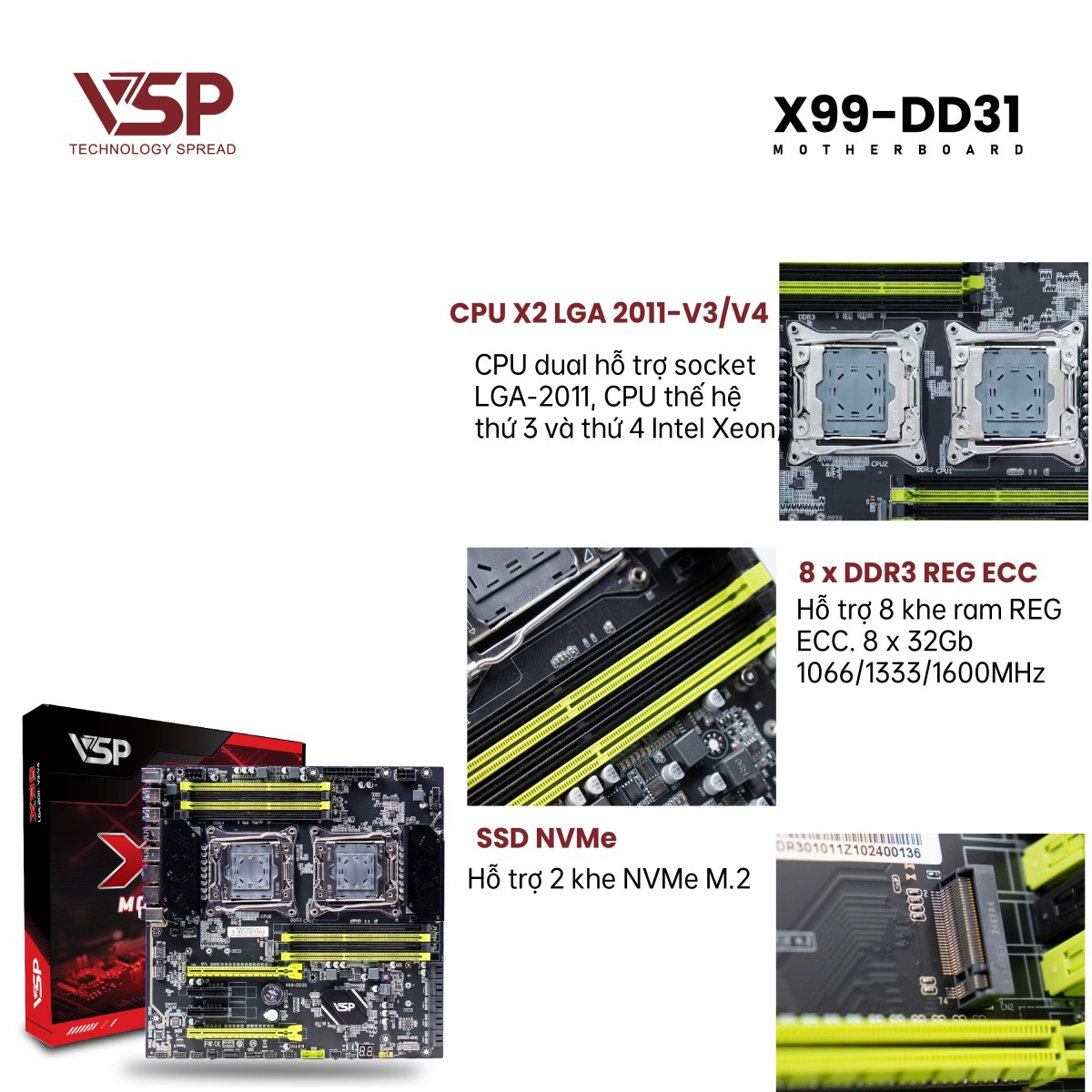

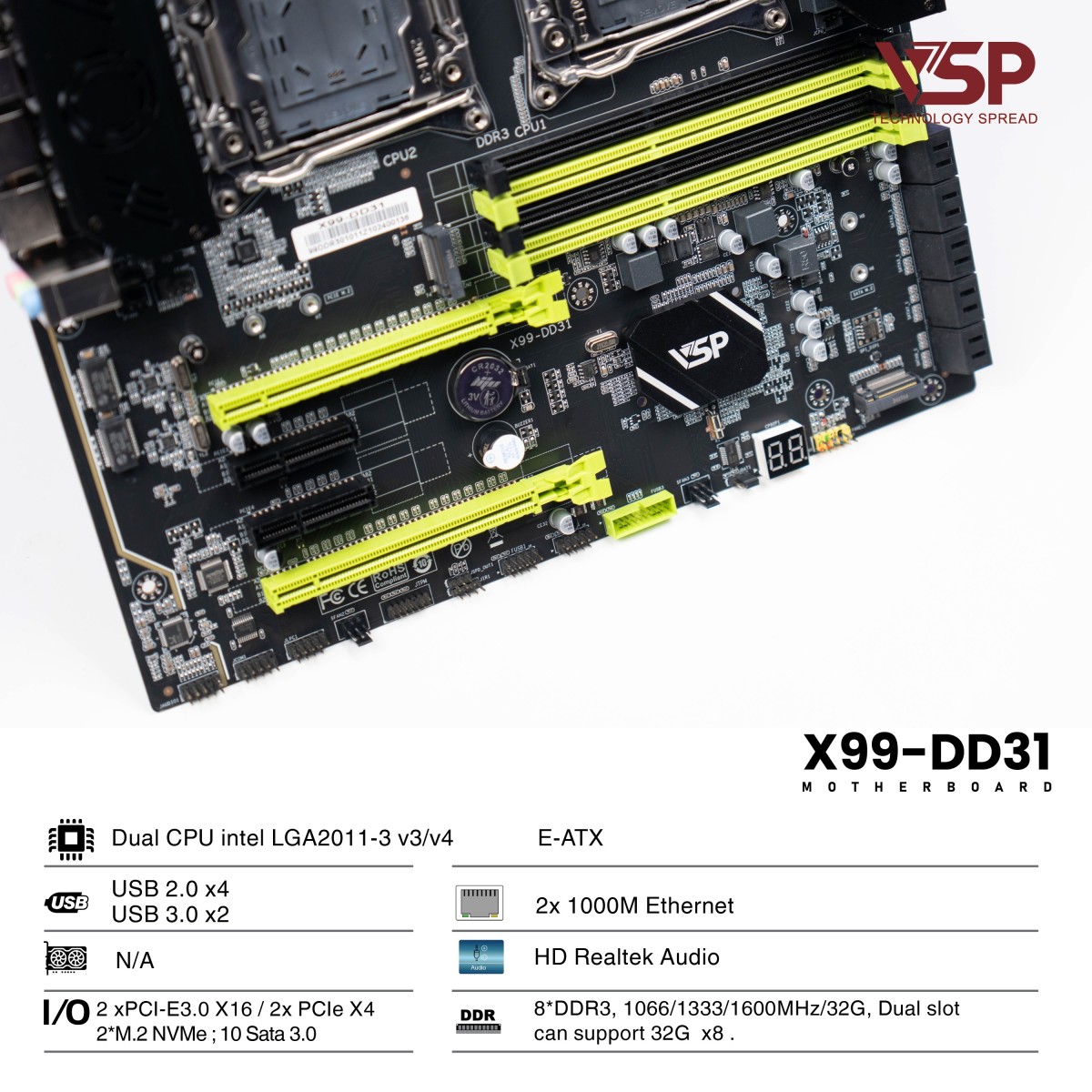

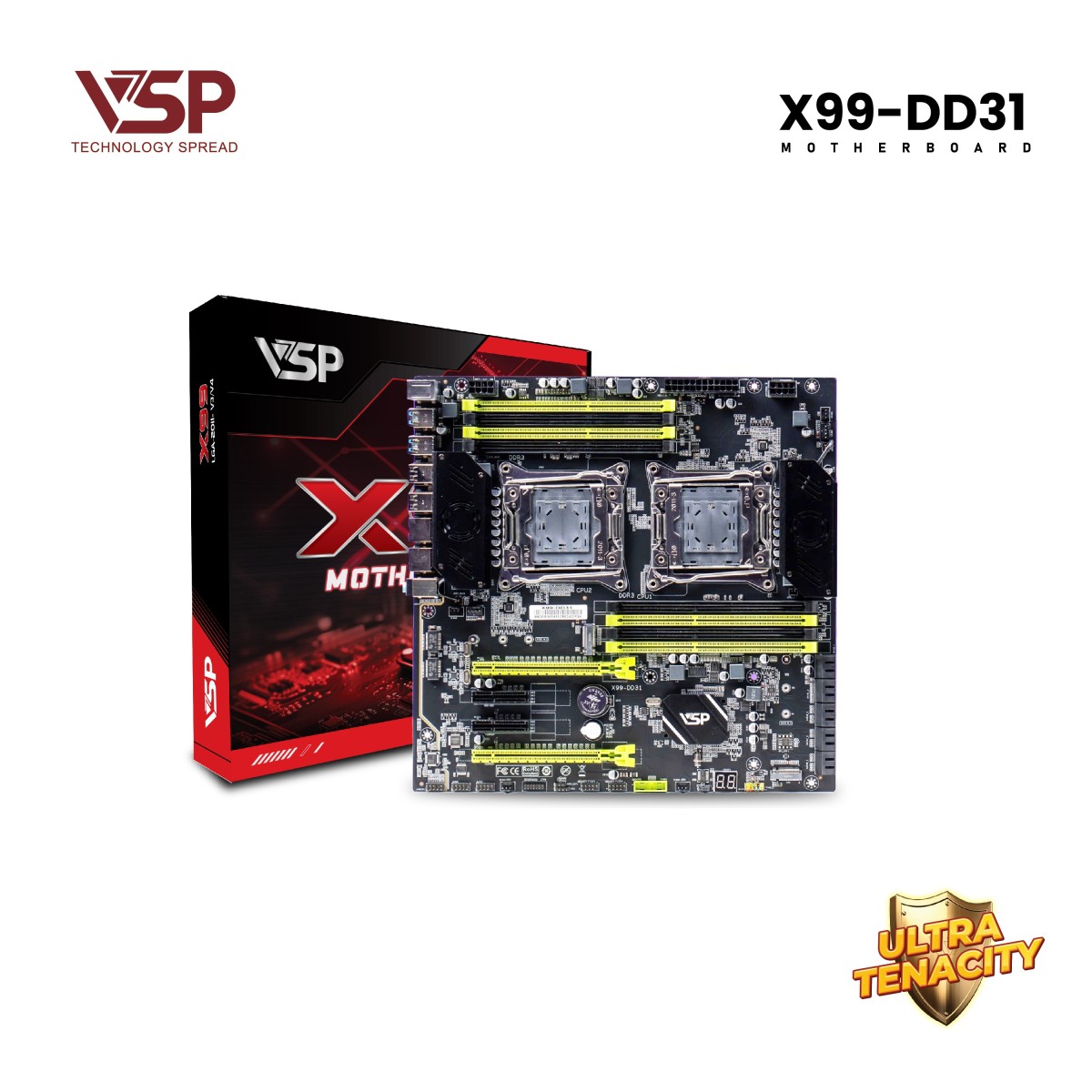

BO MẠCH CHỦ| MAINBOARD VSP X99 - DD31

Liên hệ
Hotline: 1900 633 675 Liên hệ đặt hàng
BO MẠCH CHỦ| MAINBOARD VSP X99 - DD31
  • Mã sản phẩm: 20241106-1367
  • Còn hàng
  • Model: X99-DD31
  • CPU: Intel LGA2011-3 v3/v4 series CPU
  • Memory: Dual 8*DDR4, 1066/1333/1600MHz can support 32G x8 at most.
  • PCIe: 4*（2*PCIe X16；2*PCIe X4）
  • Storage: Serial Sata    10*SATA3.0, 2*M.2 slot (NVME )
  • USB: USB2.0 pin x4 (FUSB switch  2USB 2.0)
             USB3.0 pin x2 (FUSB switch  2USB 3.0 )
  • PS/2: 1 (1*KB interface and 1*MS interface)
  • Network: 2*RJ45 /100/1000Mbs Realtek gigabit NICs
  • Audio: HD Realtek Audio
  • Functional pin: 1*FPANEL panel pin; 2* fans
  • Product size: 290mm x 295mm x6mm
Tổng quan sản phẩm
Chi tiết kỹ thuật
  • Mã sản phẩm
    X99 - DD31
  • Form Factor
    E-ATX
  • Dimension
    290mm x 295mm x6mm
  • PCIE
    4*（2*PCIe X16；2*PCIe X4）
  • Memory Type
    Dual 8*DDR4, 1066/2400/2666MHz can support 32G x8 at most.
  • CPU Socket
    Intel LGA2011-3 v3/v4 series Dual CPU
  • PS/2
    1 (1*KB interface and 1*MS interface)
  • Network Header
    2*RJ45 /100/1000Mbs Realtek gigabit NICs
  • Storage
    Serial Sata 10*SATA3.0
    2*M.2 slot (NVME )
  • USB Ports
    USB2.0 pin x4 (FUSB switch 2USB 2.0)
    USB3.0 pin x4 (FUSB switch 2USB 3.0 )
  • Functional pin
    1*FPANEL panel pin; 2* fans
  • Âm thanh
    HD Realtek Audio
