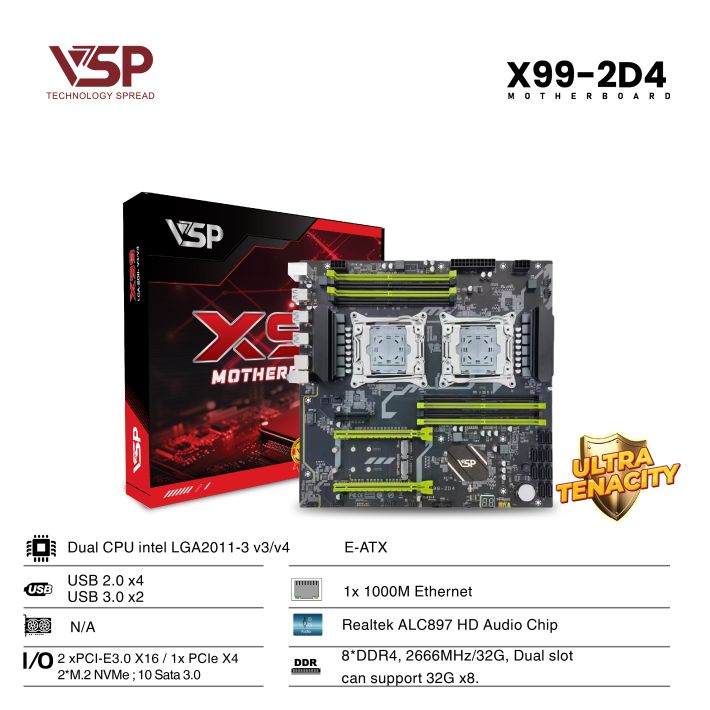

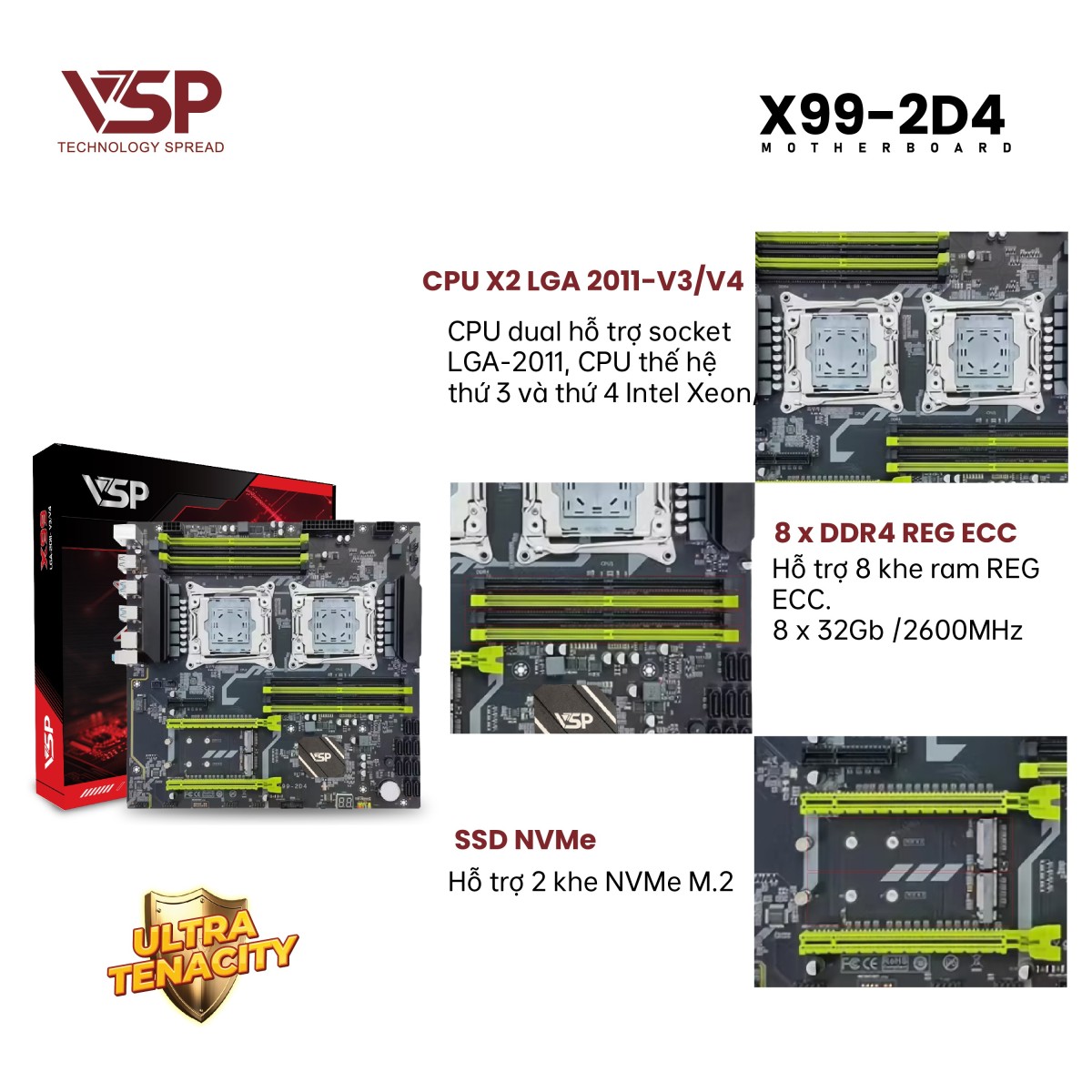

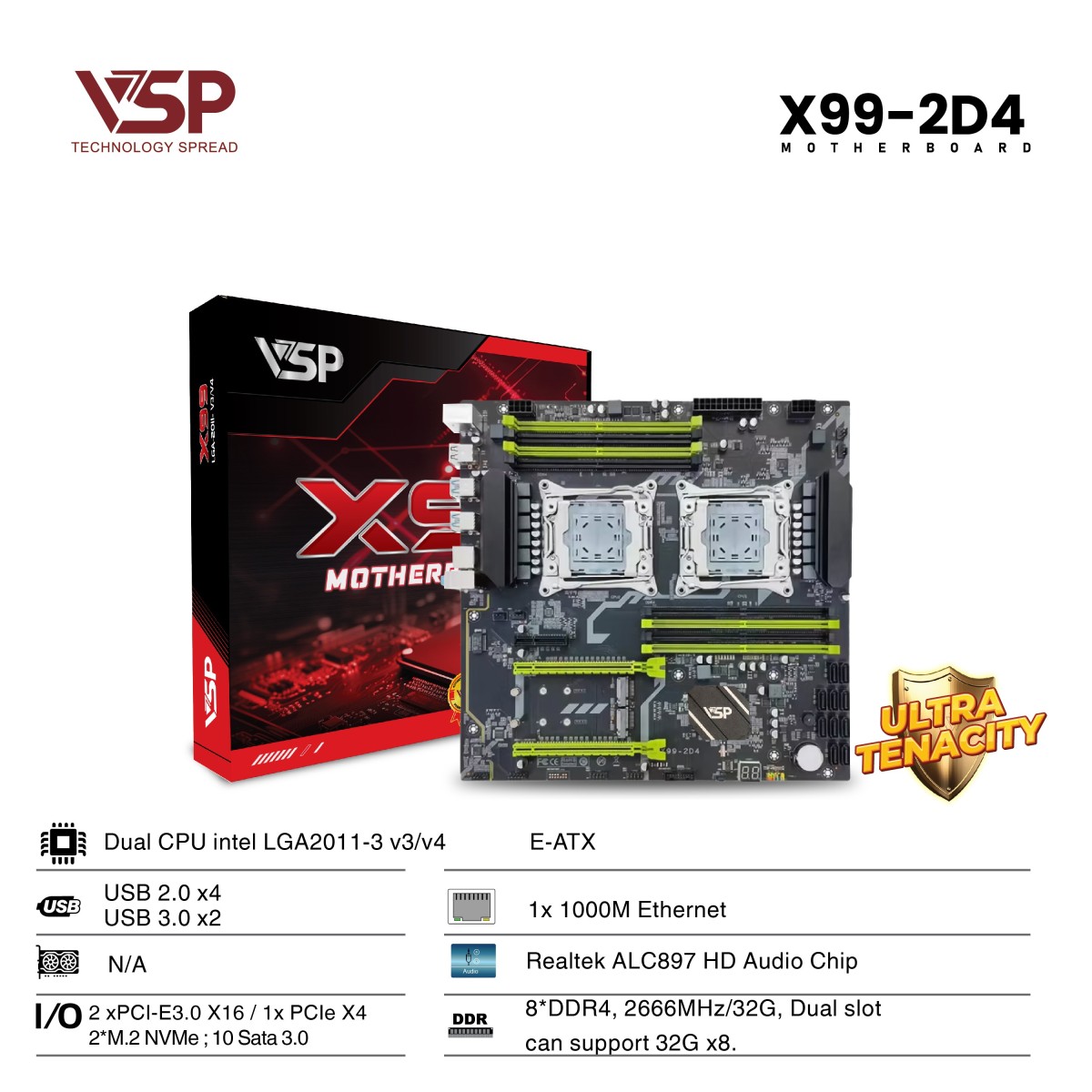

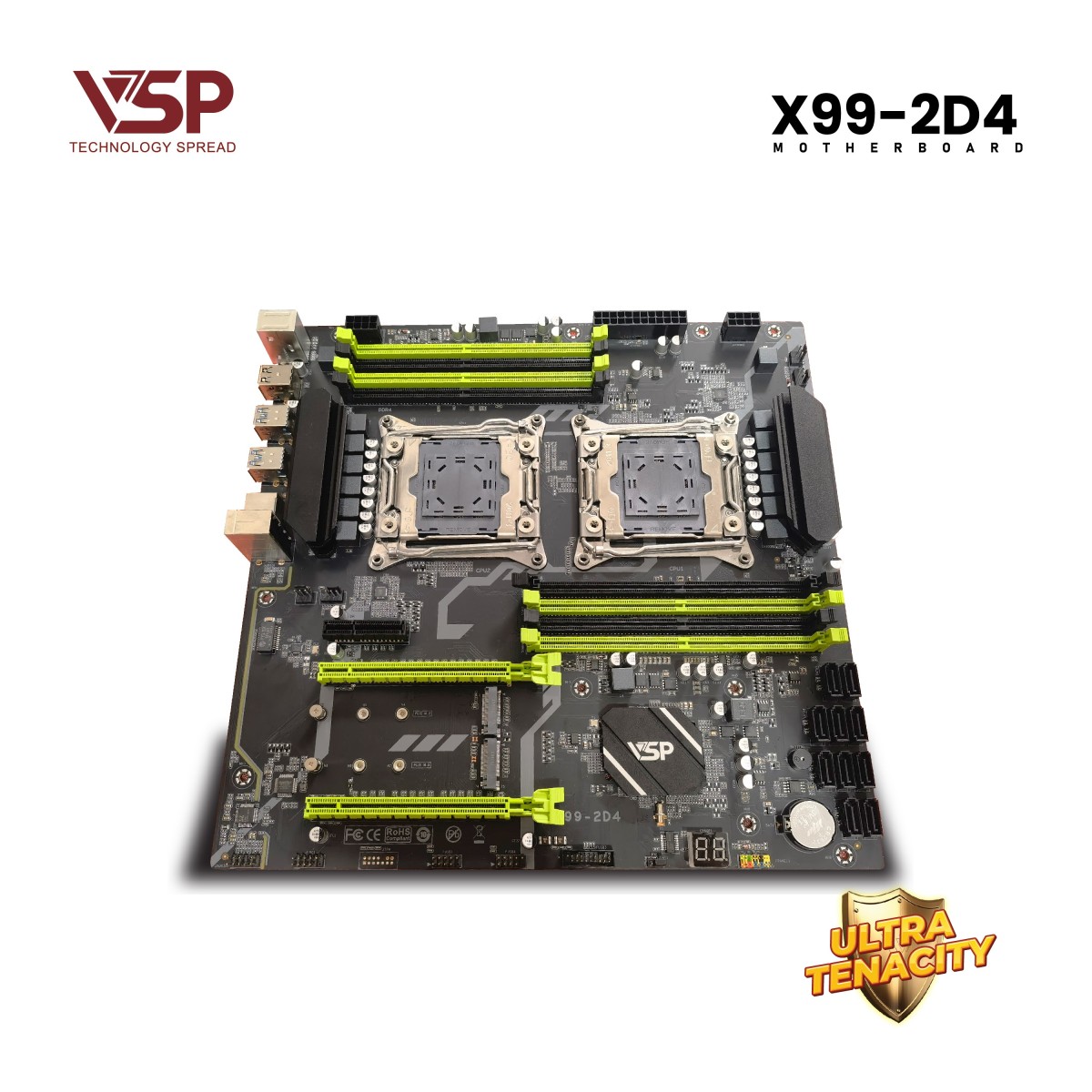

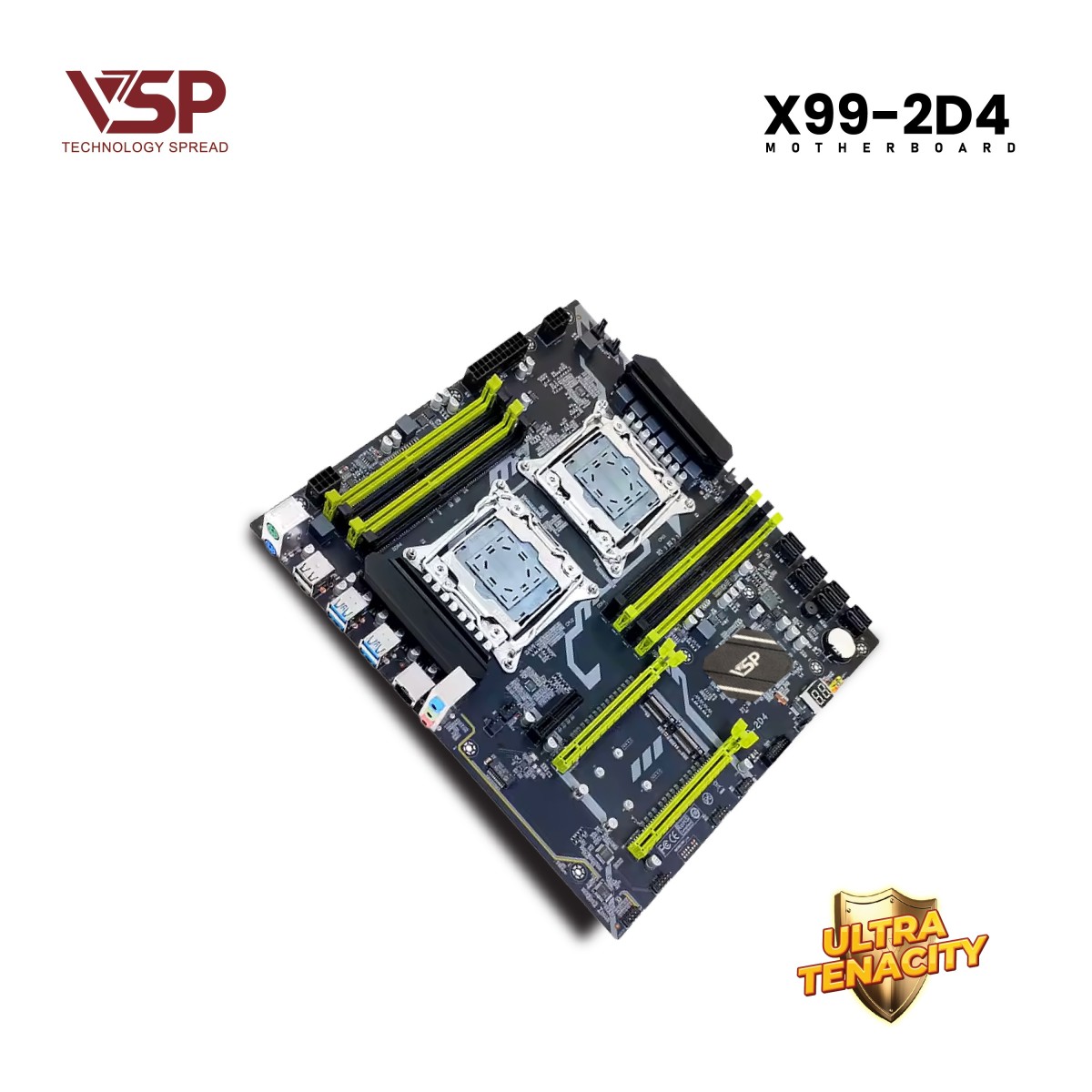

BO MẠCH CHỦ | MAINBOARD VSP X99 - 2D4

BO MẠCH CHỦ | MAINBOARD VSP X99 - 2D4
  • Mã sản phẩm: 20241106-1365
  • Còn hàng
  • Mã sản phẩm: X99 - 2D4
  • Form Factor: E-ATX
  • PCIE: 3 (2 * PCIe x16 ; 1 * PCIe x4)
  • Memory Type: 8 * DDR4, 2666MHz/32G, Dual slot can support 32G x8 at most
  • CPU Socket: Intel LGA2011-3 v3/v4 series CPU
  • PS/2: 1(1 * KB interface and 1 * MS interface)
  • Network Header: 1 * RJ45 /100/1000Mbs Realtek Gigabit chip
  • Storage
         Serial Sata 10 * SATA3.0
         2 * M.2 slot (NVME protocol)
  • Functional pin: 1 * FPANEL panel pin; 4 * fans
  • Kích cỡ:290 x 295 x 6mm
Tổng quan sản phẩm
Chi tiết kỹ thuật
  • Mã sản phẩm
    X99 - 2D4
  • Form Factor
    E-ATX
  • Dimension
    290 x 295 x 6mm
  • PCIE
    3 (2 * PCIe x16 ; 1 * PCIe x4)
  • Memory Type
    8 * DDR4, 2666MHz/32G, Dual slot can support 32G x8 at most
  • CPU Socket
    Intel LGA2011-3 v3/v4 series CPU
  • PS/2
    1(1 * KB interface and 1 * MS interface)
  • Network Header
    1 * RJ45 /100/1000Mbs Realtek Gigabit chip
  • Storage
    Serial Sata 10 * SATA3.0
    2 * M.2 slot (NVME protocol)
  • USB Ports
    USB 2.0 pin x4 (FUSB switch 2USB 2.0)
    USB 3.0 pin x2 (FUSB switch 2USB 3.0)
  • Functional pin
    1 * FPANEL panel pin; 4 * fans
  • Âm thanh
    1 (Mic-in, Line-out, Line-in)
    Realtek ALC897 HD Audio chip
