Mã sản phẩm
H610M-VD-V1.11
Form Factor
ATX
PCIE
PCIe 16x x1 / PCIe 1x x1
PS/2
PS2 x2
Network Header
1* RJ45 Lan Realtek 10/100/1000Mbps
Storage
NVMe x1
USB Ports
USB3.1 x 2 / USB2.0 x2
Bộ xử lý trung tâm
Intel® H610 Chipset
Khe cắm hỗ trợ
INTEL® LGA 1700
CPU hỗ trợ
Intel Core 12/13th I9/I7/I5/I3/Pentium

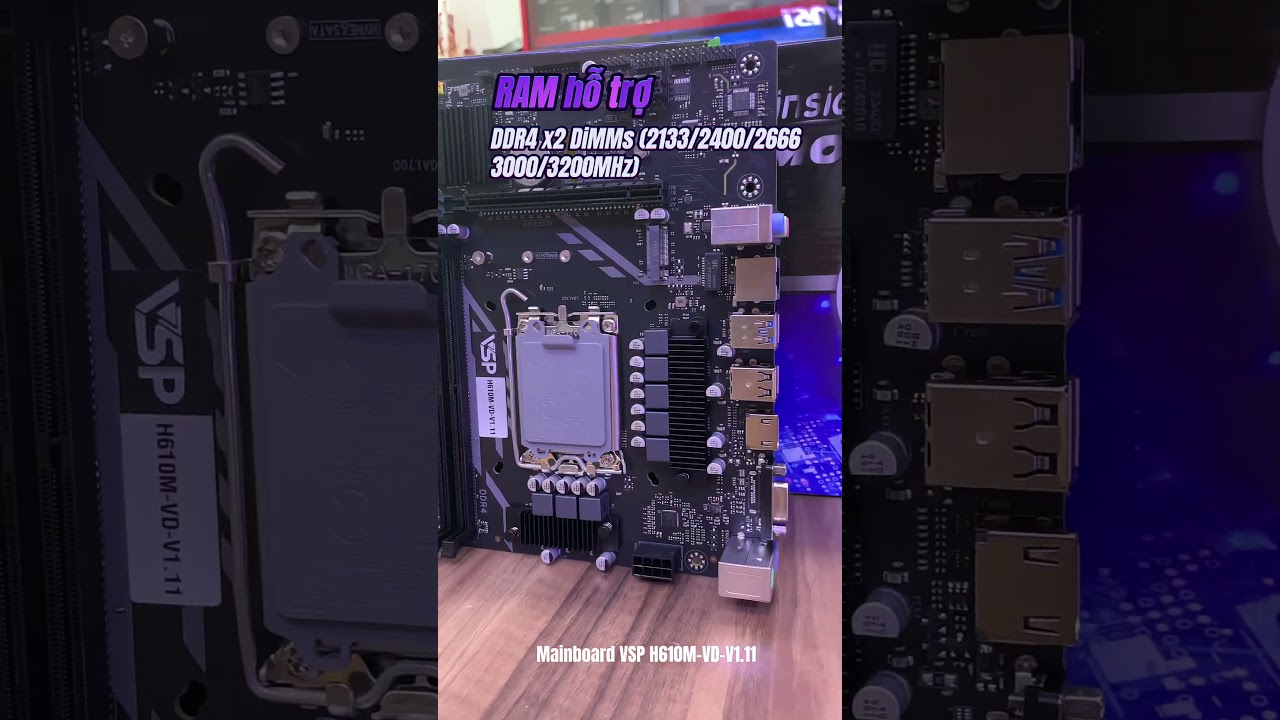

RAM hỗ trợ
2133/2400/2666/3000/3200MHz
Dual Channel DDR4, 2 DIMMs / 2 x Memory Slots (Max Capacity 32 x2)
Đồ họa
Integrated Graphics Processor/ 1 x VGA port/ 1x HDMI/

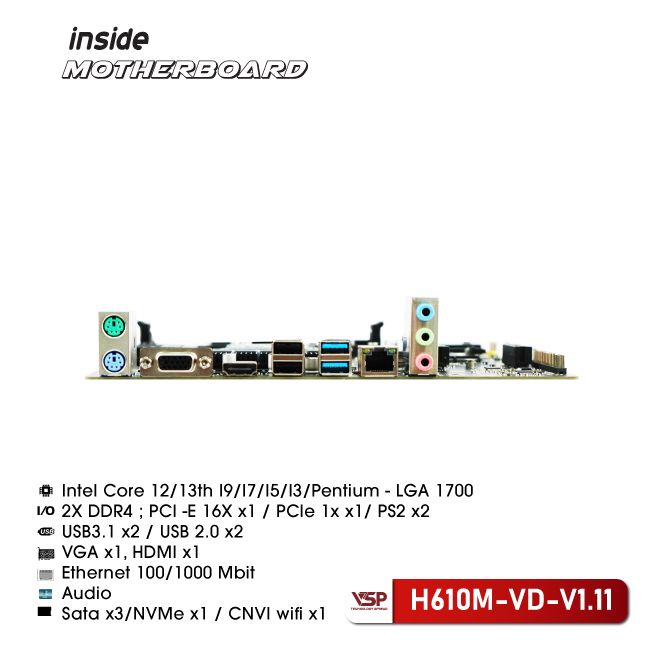

Thiết bị nhập xuất mặt sau
1* VGA Port
1* HDMI Port
2* PS/2 Mouse/Keyboard Port
2* USB 3.1
2* USB 2.0 Ports
1* RJ45 Lan Realtek 10/100/1000Mbps
HD Audio Jacks: Line in / Front Speaker / Microphon 3.5mm
Thiết bị nhập xuất mặt trước
1* PCIe 4.0 x16 Slot
1* PCIe 3.0 x1 Slot
1* NVMe PCIe 3.0 x4 (Support 2242/2260/2280 6Gb/s)

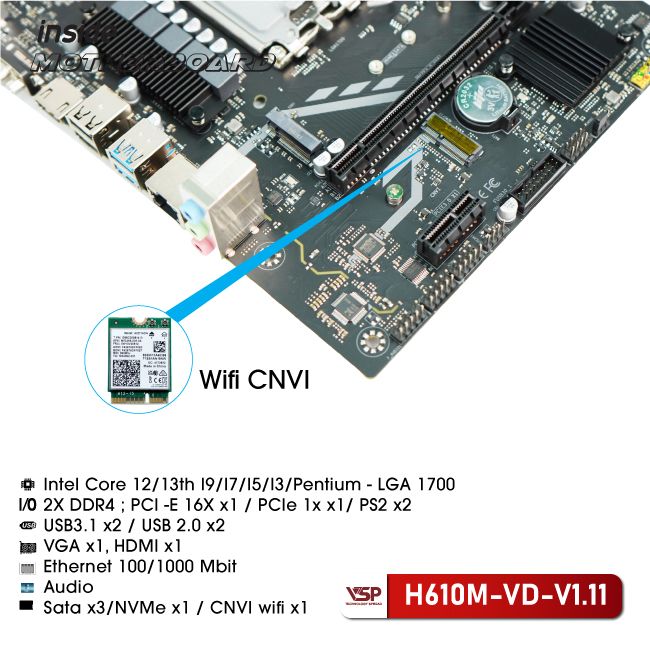

1* CNVI & Wifi
3* SATA3 6.0 Gb/s Connectors
1* USB3.1 Connectors
1* USB2.0 Connectors
2* Fan Connector (4-pin
1* Front Panel Audio Connector
LAN - Wifi
1X Realtek 10/100/1000Mbps Gigabit Ethernet on board / 1* CNVI & Wifi
Âm thanh
Realtek integrated on board
Cổng Sata/ATA
3* SATA3 6.0 Gb/s Connectors/ 1x NVMe (Support 2242/2260/2280 6Gb/s)
Hệ điều hành hỗ trợ
Windows OS 10/11
